Model, View, Controller (MVC) Programming

Model, View, Controller (MVC)

Model, View, Controller is a programming technique that separates the “logic” from the “user-interface”:

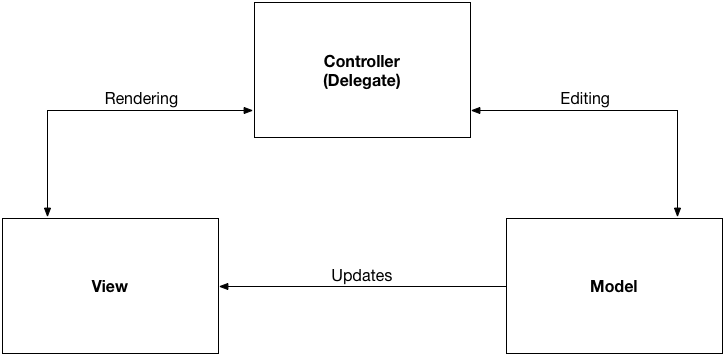

../_images/mvc_theory.png

Theoretical Model, View, Controller Design Pattern

Model

The Model encapsulates a logical building block (back-end) of the code and encapsulates the following information:

  • Properties: The state of the buiding block (object).

  • Methods: The operations that a building block can perform.

  • Events: Signals that are emitted to communicate asynchronously with the outside world.

View

The View is the user-interface (front-end) of the code that provides the user with an interactive application. It performs the following tasks:

  • Displays the contents of the model.

  • Responds to the user-input.

Controller (Delegate)

The Controller orchestrates the communication between the Model and View and ensures that they remain synchronized. The concept of the Controller satisfies applications that distinguish between a display (the View) and an instrumentation panel (the Controller), however this is overcomplicated for computer applications where the instrumentation panel is built into the user-interface (the View). In these situations the Controller is simply a delagate that is used to communicate information between the Model and the View.

Multi-Threading/Multi-Processing Design Patterns

The Observer and Publish/Subscribe design patterns are similar concepts that provide a more explicit definition of how the Model and View update each other even when they are defined in separate threads or processes. Thus, in order to communicate between the Model, View and Controller in a multi-threaded/multi-processing application, the Qt Framework provides a Signal/Slot mechanism to send/receive messages and data.

Signals

Qt Signals are interrupts (or events) that encapsulate the information that is transmitted between the Model, View, or Controller.

Slots

Qt Slots are callback methods that receive signals and provide an asynchronous response to an event that has occurred somewhere else.

Multi-Threading

Multi-threading is difficult to achieve using interpreted programming languages because the interpreter locks while executing each instruction. Although Python provides a multi-threading library, the Qt Framework multi-threading is preferable because it is implemented in C++.

There are several design patterns of multi-threading tailored to different problems based on the severity of the following requirements:

  • Parallel instruction execution.

  • Parallel data access.

Measurement Runtime MVC Multi-Threading

During a long automated measurement process, multi-threading must:

  • Synchronize data between the model and view.

  • Enable interactive display of the measurement data.

  • Provide start/step/pause/stop runtime state.

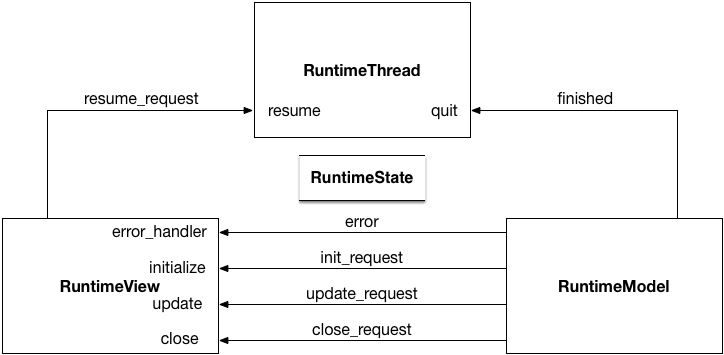

../_images/mvc_runtime.png

Measurement Runtime Model, View, Controller Design Pattern Simplification

A custom runtime measurement experience can be implemented by inheriting the following classes:

The multi-threaded runtime environment is controlled by the following classes:

Hence, this implementaion is a simplification of the theoretical MVC design pattern and is suited towards measurement applications.

Comparison of Automated Measurement Techniques

Three incremental solutions are available for measurement automation:

  1. Sequencer.

  2. Scripting.

  3. Application.

The MVC programming design pattern enables code re-use and refinement to move between these three solutions by separating the model (the logic) from the view (the user interface). Each solution has different limitations on customization as summarized below:

Solution Type View Controller Model
Sequencer Default RuntimeView RuntimeThread RuntimeModel Sequencer Actions
Sequencer Jupyter Notebook None/td> Custom RuntimeModel
Application Custom RuntimeView RuntimeThread Custom RuntimeModel

RuntimeModel Sequencer Actions

The Sequencer searches through installed modules and will expose any public method of a class that inherits from RuntimeModel as a Sequencer Action.
